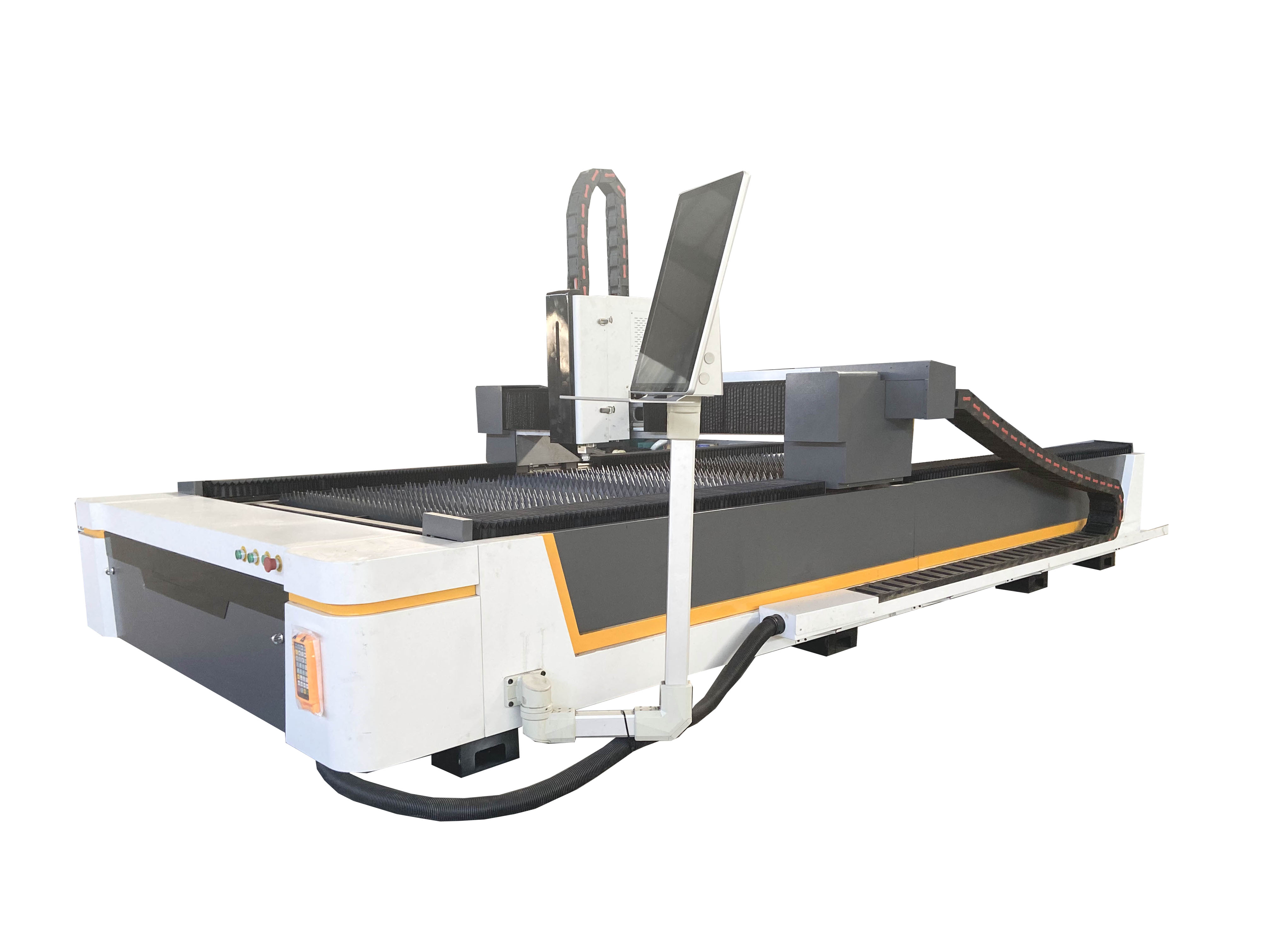

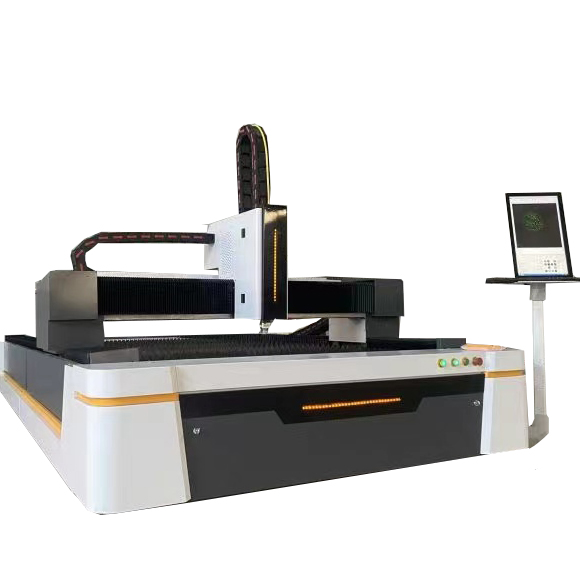

500W/1000W Fiber Laser Cutting Machine

inquiry

Model	GS1530 Fiber laser cutting machine
Working Area	1500*3000mm
Laser Power	1000/2000/3000W Raycus made in China
Laser Wave Length	1064nm
Working Table	Sawtooth
Maximum Idle Running Speed	50m/min
Position Accuracy	±0.05mm/m
Position Speed	60m/min
Minimum Line Width	± 0.02mm
Cutting Thickness	Stainless Steel≤4mm , Carbon Steel≤10mm
Control System	Fastcut
Position Type	red dot
Working Voltage	380V/50Hz
Auxiliary Gas	oxygen,nitrogen,air
Working life of fiber module	More than 100000 hours
Fiber laser cutting head	Raytools
Focus lens	Raytools
Driver system	750W servo motor with shimpo reducer
Liner guider system	HIWIN made in Taiwan
Rack system	YYC Taiwan
Chain system	Chinese chain system
Warranty time	2 years
Delivery time	25 days

A : Characteristics

1.Stability and reliability of light path system and control system

2.Imported original fiber lasers,high and stable function,lifespan is over 100000 hours

3.Higher cutting quality and efficiency ,cutting speed is up to 60m/min with appearance and beautiful cutting edge

NO	NAME	QUALITY (set)	Country of original
A	Fiber source
1	1000W fiber source	1	Raycus made in China
2	Power supply
3	Water chiller system
B	Laser cutting head
1	Laser cutting head	1	Raytools
C	Machine body
1	Machine body	1	China
2	X、Y rack system	1	YYC Taiwan
3	Guide rail	1	Hiwin Taiwan
4	Servo motor and driver system	3	750W Fuji Japan
5	Motor reducer system	3	Shimpo Taiwan
D	Control system and software
1	Control system （include software ）	1	Cypcut
